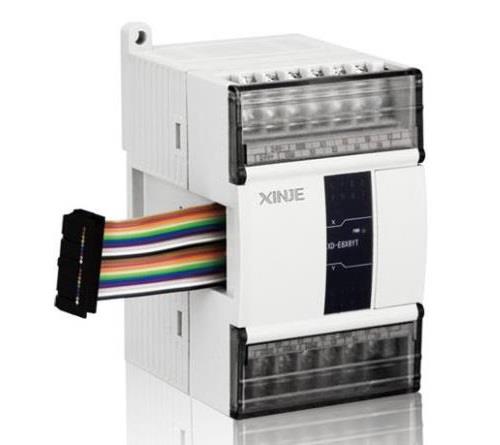

XD series PLC is adapted to the analog input and output right expansion module, including 4-point input and 2-point output specifications. XD series PLC can generally be expanded to 10~16 modules. Power supply specifications: DC24V. 14-bit high-precision analog input, 12-bit high-precision analog output. Analog input type: voltage and current optional. Analog output type: voltage and current optional.
|
project |
Specification |
|
Usage Environment |
No corrosive gas |
|
Ambient temperature |
0℃~60℃ |
|
Storage temperature |
-20~70℃ |
|
Ambient humidity |
5~95%RH |
|
Storage environment humidity |
5~95%RH |
|
Install |
It can be fixed with M3 screws or directly installed on the DIN46277 (35mm wide) rail |
