XLME series basic unit

In stock

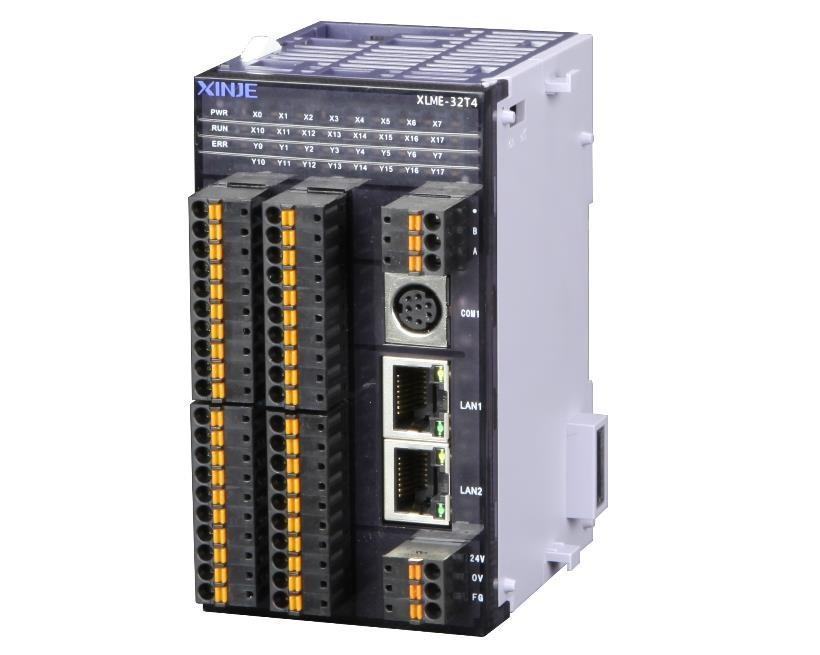

Ethernet communication, motion control thin PLC, compact and practical, saving installation space; supports 4 channels of high-speed pulse output, 4 channels of AB phase high-speed counting, interpolation and following functions

Ask a Question
Guarantee Safe & Secure Checkout
  • Free delivery over 00
  • 30 Days Return Period
SKU: abf8dc6c19d9 Category:

Description

project

DS5F series full-function type



Basic Specifications

Power Range

0.1~2.6KW

Input Power

Single/three-phase AC200V~240V, 50/60Hz; three-phase AC340V~420V, 50/60Hz

Encoder feedback

17Bit/23Bit communication encoder

Control method

Three-phase full-wave rectification IPM PWM control, sinusoidal current drive mode

use

environment

Ambient temperature

Operation: -10~+40℃ (no condensation) / Storage: −20~+60℃ (no condensation)

Ambient humidity

Operation/storage: below 90%RH (no condensation)

Vibration/shock resistant

4.9m/s2/ 19.6m/s2

Function

Protection function

Overvoltage, undervoltage, overheating, overcurrent, overload, overspeed, abnormal analog input, excessive position deviation, output short circuit, encoder abnormality, regeneration abnormality protection, overtravel protection, oscillation protection, running disconnection protection, etc.

Dynamic brake

none

Communication function

RS232/RS485: Standard MODBUS RTU protocol

Braking resistor

Built-in brake resistor, external brake resistor can be connected

Display and operation

5-digit LED indicator light, power indicator light, 4-button operation

Load variation rate

0~100% load: ±0.01% or less (at rated speed)

Voltage Regulation

Rated voltage ±10%: 0.01% (at rated speed)

Temperature change rate

20±25℃: ±0.1% or less (at rated speed)

Input and output signals

Location

Output

Output form

ABZ phase 5V differential

Frequency division function

support

Collector Z phase output

support

Analog input

2 channels, 1 channel external torque analog, 1 channel external speed analog

Digital Input

10-way SI input

Servo enable, alarm clear, forward rotation prohibited, reverse rotation prohibited, torque limit selection, internal speed selection, gear ratio switching, mode switching, pulse input prohibition, zero speed lock, position deviation clear, internal position step change signal, internal control mode direction switching

Digital Output

8-way SO output

Positioning completed, servo ready, alarm output, torque limit output, same speed detection, rotation detection, speed reached, brake release output, warning output

Position control mode

Maximum input pulse frequency

Open collector: 200kpps; Differential: 500kpps

Pulse command mode

Accepts 18~24V/3.3~5V pulse + direction, AB phase pulse, CW/CCW signal

Control method

External pulse/internal position

Feedforward compensation

0~100% (setting resolution is 1%)

Positioning completion width setting

0~65535 command units (setting resolution is 1 command unit)

Electronic gear ratio

1/10000≤B/A≤10000

Speed control mode

Control method

Internal three-speed, external speed mode, analog speed

Command smoothing method

Low pass filter, smoothing filter

Analog input

Voltage range

±10V

Input Impedance

72KΩ

Torque limit

Internal parameters

Speed change rate

External load rated change 0~100% load: ±0.01% or less (at rated speed)

Rated voltage ±10%: 0.01% (at rated speed)

Ambient temperature 20±25℃: ±0.1% or less (at rated speed)

Torque control mode

Control method

Internal torque, analog torque

Command smoothing method

Low pass filter, smoothing filter

Analog input

Voltage range

±10V

Input Impedance

72KΩ

Speed Limit

support

Bus control mode

Number of controlled axes

none

Communication Protocol

none
