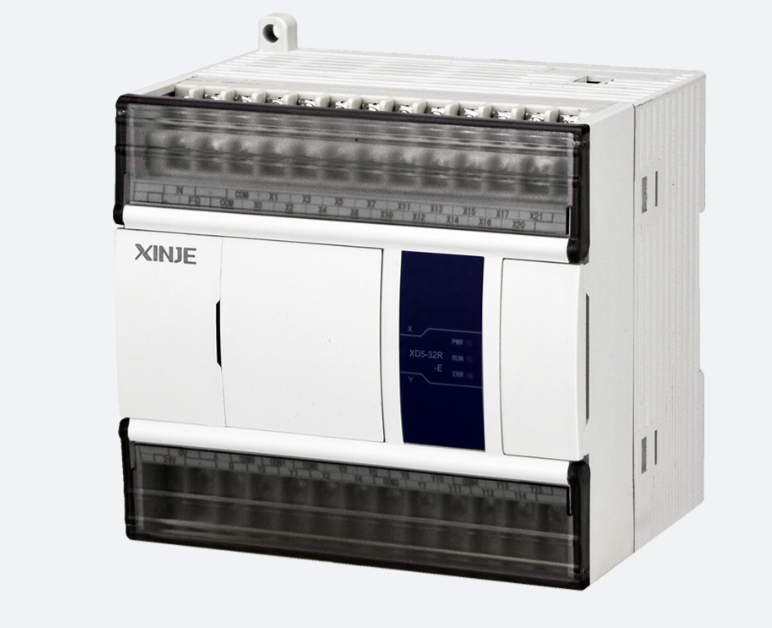

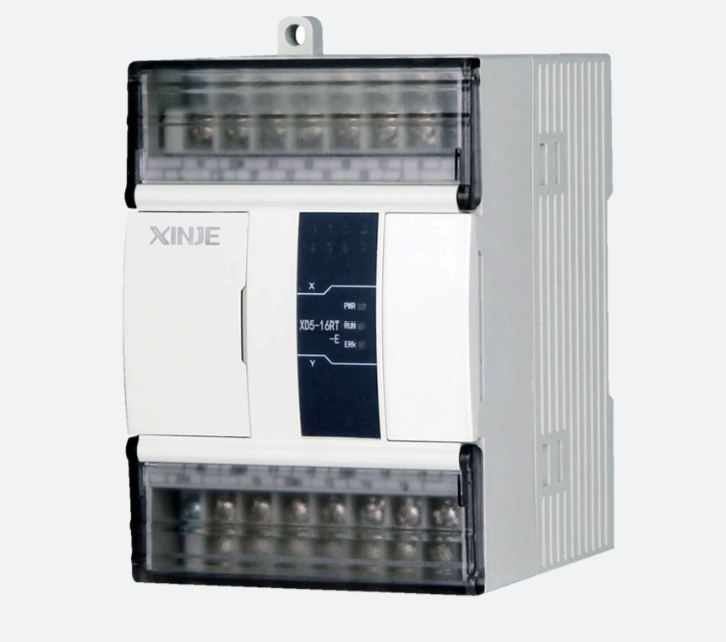

Description
Powerful functionality, stable performance, meeting diverse needs
In addition to all the functions of standard PLC, it has faster processing speed (about 15 times that of XC series), larger internal resource space and 2~10 channels of high- speed pulse output. lt supports the connection of right expansion module, expansion BD board (not supported by 16 points) and left expansion ED module, and supports SD card expansion (except 16 points), which can meet various requirements.
Basic functions and configurations
Program capacity 512KB
Basic instruction 0.02~0.05us
Max I/O 592 points
I/O sequential control
High speed input and output
2~10CH 100KHz pulse outputs
3~10CH high-speed counting (max 80K for single-phase, max 50K for AB phase)
Communication function
RS232, RS485
X-NET fieldbus
USB port high-speed download (max 12Mbps)
